Researchers on the Ruhr College Bochum and the Max Planck Institute for Safety and Privateness (MPI-SP) have give you an strategy to analyzing die photographs of real-world microchips to disclose {hardware} Trojan assaults — and are releasing their imagery and algorithm for all to strive.
“It is conceivable that tiny adjustments may be inserted into the designs within the factories shortly earlier than manufacturing that might override the safety of the chips,” says Steffen Becker, PhD and co-author of the paper detailing the work, of the issue the group set about to unravel. “In excessive instances, such {hardware} Trojans might permit an attacker to paralyze elements of the telecommunications infrastructure on the push of a button.”

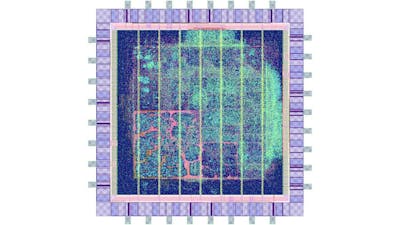

Excessive-resolution die photographs and unique format recordsdata have confirmed sufficient to mechanically flag doubtlessly malicious modifications in CMOS chips. (📷: Puschner et al)
chips constructed on 28nm, 40nm, 65nm, and 90nm course of nodes, the group set about automating the method of inspecting the completed silicon chips for hardware-level tampering. Utilizing designs created by Thorben Moos, PhD, the researchers found out a technique to check their strategy: taking the bodily chips Moos had already constructed and evaluating them to unique design recordsdata with minor modifications, which means the 2 are not a direct match.
“Evaluating the chip photographs and the development plans turned out to be fairly a problem, as a result of we first needed to exactly superimpose the info,” says first writer Endres Puschner. “On the smallest chip, which is 28 nanometers in dimension, a single speck of mud or a hair can obscure an entire row of normal cells.”
Regardless of these challenges the evaluation algorithm confirmed promise, detecting 37 of the 40 modifications — together with all of the modifications made to the chips constructed on course of nodes between 40nm and 90nm. The algorithm did, admittedly, throw up 500 false positives — however, says Puschner, “with greater than 1.5 million commonplace cells examined, it is a superb price.”
The group’s strategy picked up on modifications (left) in comparison with the anticipated design output (proper) mechanically. (📷: Puschner et al)
The need to investigate silicon-level {hardware} to detect both malicious modifications or counterfeit {hardware} was additionally behind latest work by engineer Andrew “bunnie” Huang, who developed a method for peering inside packaged chips and uncovering the silicon inside. Huang’s strategy lacks the decision, nevertheless, for cell-level evaluation — which this analysis group managed via electron microscopy.
The group’s paper is offered below open-access phrases on the IACR Cryptology ePrint Archive, whereas the complete imagery and supply code behind the paper has been printed to GitHub below the permissive MIT license. “We […] hope that different teams will use our knowledge for follow-up research, Becker says. “Machine studying might most likely enhance the detection algorithm to such an extent that it could additionally detect the adjustments on the smallest chips that we missed.”
